Precision molds that strive for superior quality, only for customer satisfaction!
 |
| Place of Origin: | Dongguan, China |
| Brand Name: | Sheng Rui |
| Certification: | ISO9001: 2015 |
| Model Number: | SR-IM5 |
| Minimum Order Quantity: | 10 Pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Anti-Rust Oil, PE film covered first, Foam box, then carton |
| Delivery Time: | Normally, simple parts, 7-15 days, complicated parts 15-20 workdays, according quantity and the complexity of drawing. |
| Payment Terms: | T/T 30% as deposit |
| Supply Ability: | 1200-1400 units per month |
| Shaping Mode: | Puching Mold | Design Software: | CAD/ProE/UG/SOLIDWORKS |
|---|---|---|---|
| Surface Treatment: | Texture/Polished/Painting | Mold Material: | NAK80/S136/SKD61 ECT |
| Gate Type: | Pin Point Gate | Color: | Available |
| High Light: | Pin Point Mould Ejector Pin,Texture Mould Ejector Pin,Injection Mold Components Pin |
||

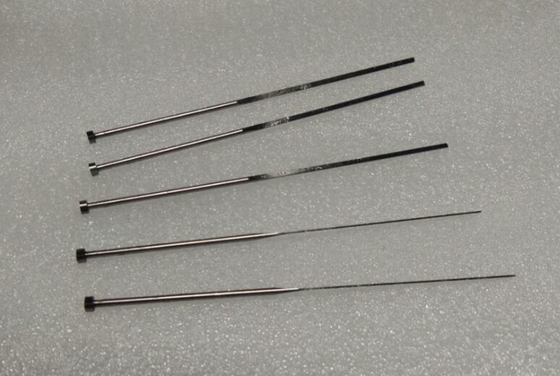

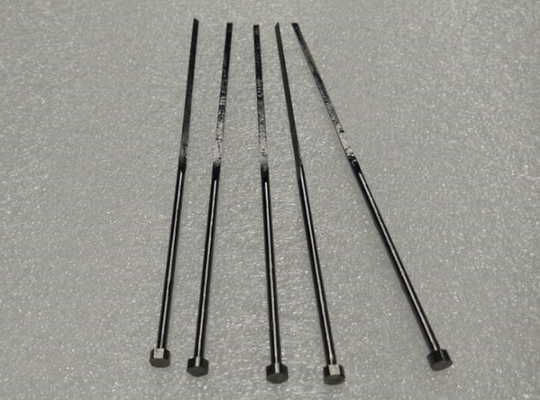

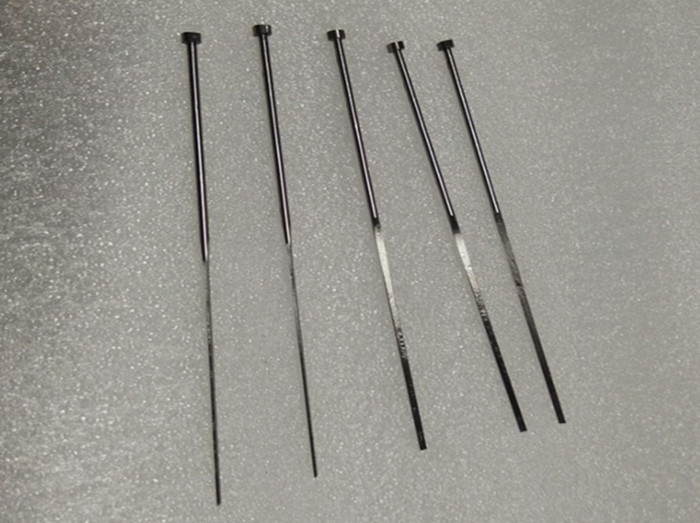

SKD61 Injection Mold Components Nitriding Flat Ejector Pin of Plastic Mold Parts
Feature of the Parts:
1. CNC machine and Grinding machine make the parts to be ground into different shapes.
2. Semicon-pin Series for Semiconductor Packaging Mould Various of precision semicon-pin series include return pins, side pins, location pins, pkg fix pins, pkg moved pins.
3. Pins with chrome coating, with 0.08 surface smooth, which can only be achieved by mirror polishing, and the plat shape by precision grinding.
4. Special ordered foam packaging box used to ensure pins in good condition.
5: Packing as standard: Anti-Rust Oil, PE film covered first, Foam box, then carton
Material Comparison:
| JIS | SKD11 | SKD61 |
| AISI | D2 | H13 |
| DIN | 1.2379 | 1.2344 |
Product Information:
|
Name |
Flat ejector pin , flat pin, Pusher, insert, middle needle, needle |
| Material |
SKH 51 – JIS High Speed Steel (M2)(1.3343),equivalent SKD 61 – JIS Die Steel (H13)(BH13)(STD61),equivalent |
| Feature | Resistance to 1600 ° C high temperature |
| Usage | Plastic mold, Medical device, Automotive industry, etc |
| Surface | It close to Ra 0.4, the standard is R0.8 |
| OEM | Accept |
| Shipping | By sea, airUPS, DHL, FEDEX, etc |
| QC | full inspection before shippmnet by precision machine |
| Near port | Shenzhen |
Design:
The surface can be coating such as TiN / TiCN / TiAlN and other coatings , that can not only protect the ejector pin but also make them more durable. These coatings can reduce the friction and make the ejector pin become more wear resistant and the ejection of the completed part more consistent
Inspection:
1. Every product will be inspected by precision machine.
2. our technical staff monitors and operates throughout the process.
3. any question you can contact us, the online time of our customer service: 8:00am---20:00pm
